Dump Semi-Trailer
Hydraulic rear or side tipping trailer for bulk materials — U-shape or rectangular body, factory-direct from Liangshan.
Common configuration shown above — these are our typical builds, fully customizable. Tell us your payload, local road rules and quantity and we will match axle count, dimensions and suspension to your market.
Dump Semi-Trailer Configurations

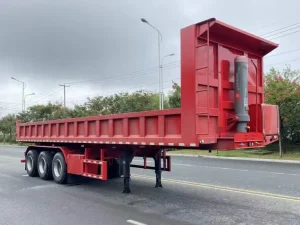

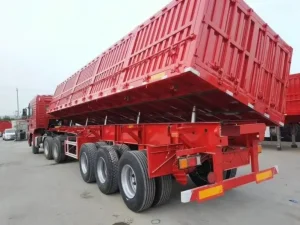

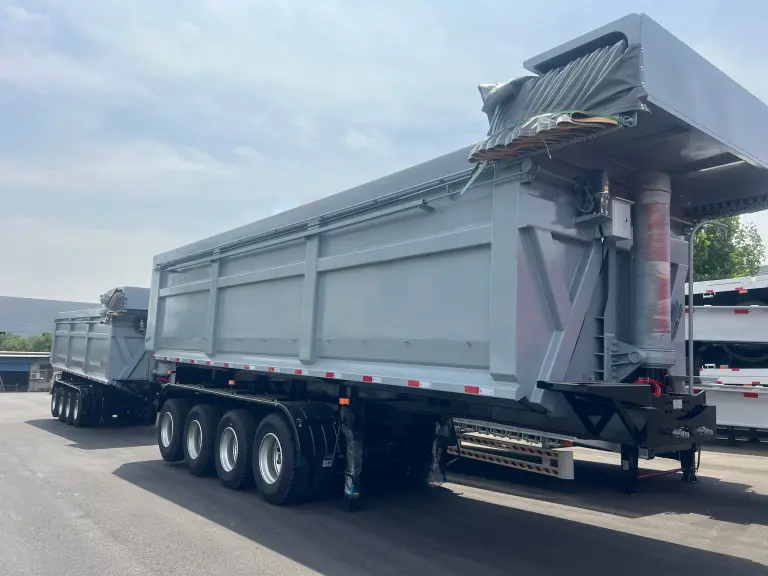

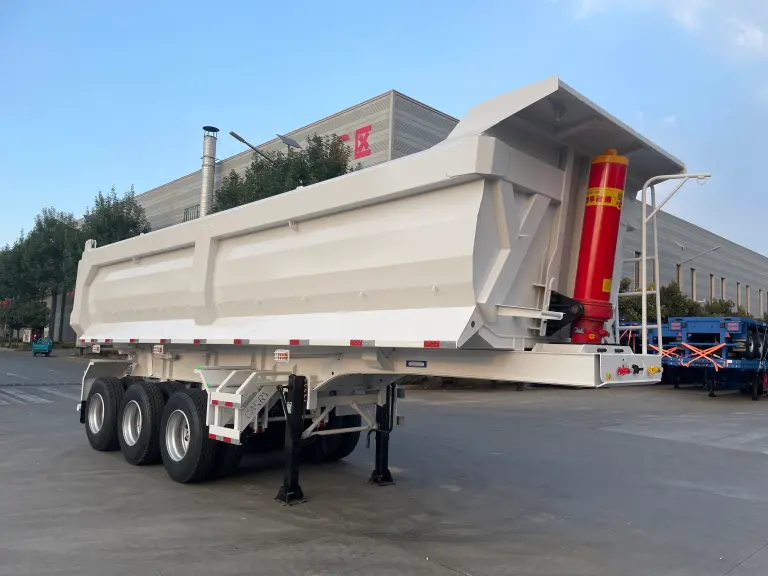

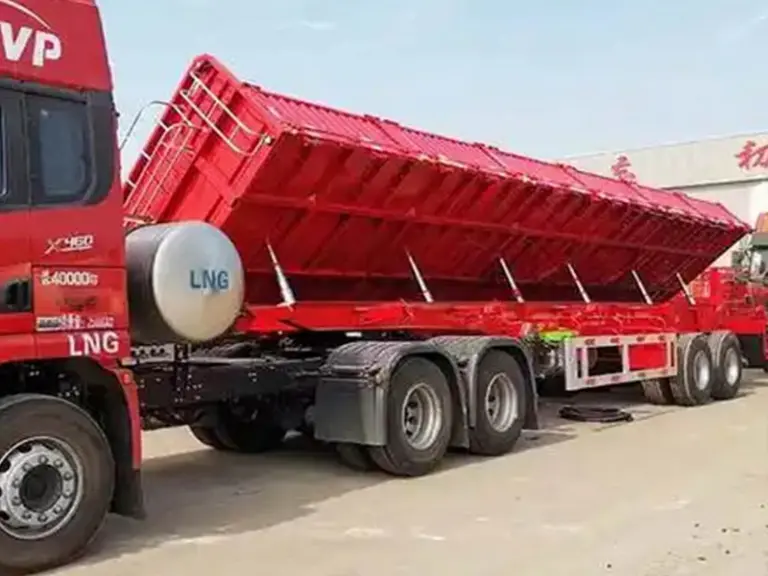

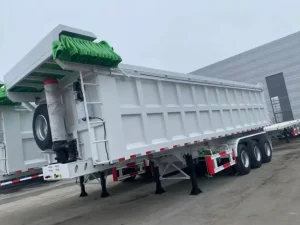

Shown: Side, 3-axle and 4-axle configurations (other axle counts available) — tell us your payload, road rules and quantity and we will match the body, axle count and suspension.
About this Dump Semi-Trailer
Our dump semi-trailer uses a hydraulic hoist to tip the body for fast unloading of bulk materials. Built in Liangshan — China's trailer manufacturing hub — every unit is engineered to meet the road, dimension and axle-load regulations of your destination country, so it is legal to register and operate on local highways.
Choose rear-tipping or side-tipping, U-shape (clean discharge) or rectangular bodies, and light-duty or reinforced (mine/construction) builds.
Other Common Sizes & Configurations
Beyond the standard build, we make these Dump Semi-Trailer variants to match different cargo and local road rules — all sizes, axle counts and capacities listed above are configurable to your specification:
- 10–11.5 m body — 3-axle rear-tipping, 31.5–60 t; most common
- 9.5 m short body — 2-axle, lighter regional hauls
- U-shape 20–32 m³ — clean-discharge bulk body
- Side-tipping 24–32 yd³ — for road shoulders and pits
- Reinforced mine build — 80–100 t non-standard
Our Dump Models
Browse the specific Dump Semi-Trailer configurations we build — spec, quote and ship.
Technical Specifications
Typical configuration — customizable to your payload and road conditions.
| Item | Specification (typical — customizable) |
|---|---|
| Type | Dump Semi-Trailer |
| Payload | 30–100 t (customizable) |
| Gross Vehicle Weight (GVW) | 40 t (3-axle class) |
| Axle | 2 / 3 / 4 (customizable) |
| Tipping | Rear / Side (customizable) |
| Overall length | 9.5–13 m (customizable) |
| Width | 2.5 / 2.55 m (customizable) |
| Volume | 20–45 m³ (customizable) |
| Body | U-shape / Rectangular (optional) |
| Brake system | Dual-line pneumatic |
| Tyres | 12R22.5 |
All dimensions, axle count, suspension, materials and fittings above are configurable — tell us your payload, local road rules and quantity and we will build to your market.
Dump Semi-Trailer Price
Indicative export pricing — your quote depends on specs and quantity.
A standard 3-axle rear-tipping dump typically runs USD 12,000 – 20,000 from our Liangshan factory. Side-tipping, U-shape and reinforced mine builds add to the price.
Pricing reflects our factory-direct export rates; final quotation is confirmed against your exact specification and order volume.
Get a firm factory-direct quote
Tell us your payload, quantity and destination port. We reply within 24 hours.
Why Buy From Shuyue
Factory-direct quality you can verify.
How the Dump Semi-Trailer Compares
Not sure which trailer type fits your cargo? Here is how the Dump Semi-Trailer differs from close alternatives.
vs Flatbed Semi-Trailer
Dump adds a hydraulic hoist body for self-unloading bulk; the Flatbed Semi-Trailer is an open deck loaded by crane or forklift.
vs Fence Semi-Trailer
Dump uses a closed tipping body for loose bulk; the Fence Semi-Trailer has open rails for ventilated piece or bagged goods.
vs Concrete Mixer Upper Body
Dump carries dry bulk and tips it out; the Concrete Mixer Upper Body spins wet concrete in a drum and discharges from the rear.
Where It Works
Mining & Quarry
Ore, overburden and aggregate on site roads.
Construction
Sand, gravel and demolition debris to and from site.
Agriculture
Grain and fertilizer in bulk seasons.
Road Works
Asphalt and base materials for paving crews.
Customer Projects
Real Dump Semi-Trailer deliveries to key markets.
Other Trailer Types
Explore the full 15-type Shuyue range.
One Factory, the Full Semi-Trailer Range
Shuyue is a Liangshan-based semi-trailer manufacturer — built in China's leading trailer hub, where the full 15-type range is produced on shared engineering, welding and QC lines under one accountable supplier.
- Flatbed · Fence · Lowbed · Dump · Cargo Box
- Side Wall · Side Curtain · Skeletal · Car Carrier · Liquid Fuel
- Cement Bulker · Concrete Mixer · Superlink · Special · Trucks
- Mixed fleets sourced from one factory — consistent quality, one contract
- Every type customizable to your payload, road rules and quantity
Get a Quote for this Dump Semi-Trailer
Tell us your payload, quantity and destination port — we'll return a factory-direct quote fast.
