Liquid Fuel Tank Semi-Trailer
Aluminium or steel tanker for fuel and liquids — multi-compartment, baffled and ADR-ready, factory-direct from Liangshan.
Common configuration shown above — these are our typical builds, fully customizable. Tell us your payload, local road rules and quantity and we will match axle count, dimensions and suspension to your market.
Liquid Fuel Tank Semi-Trailer Configurations

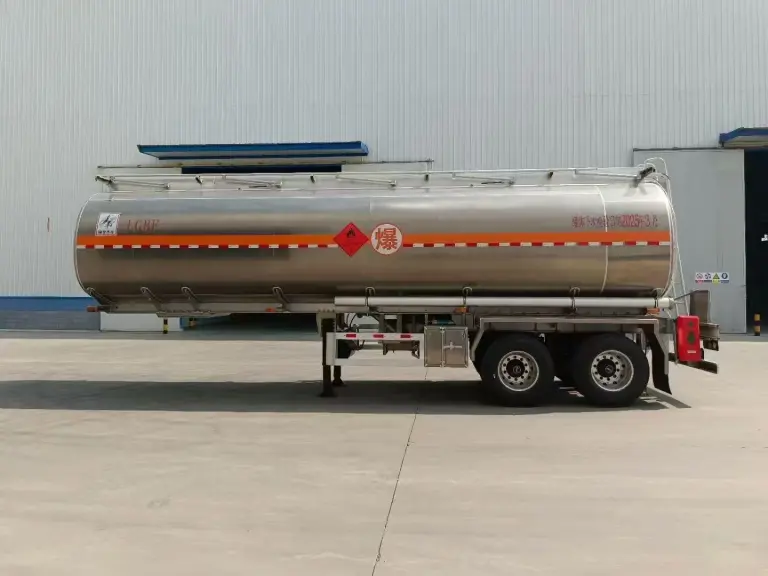

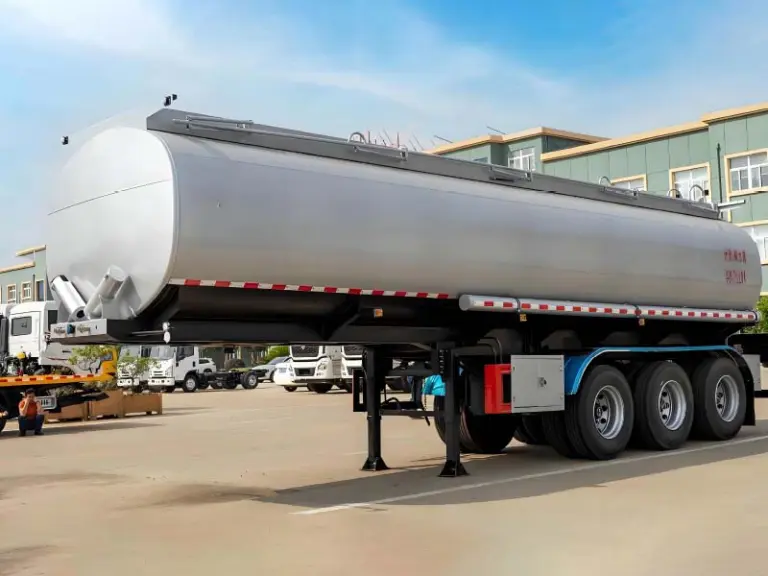

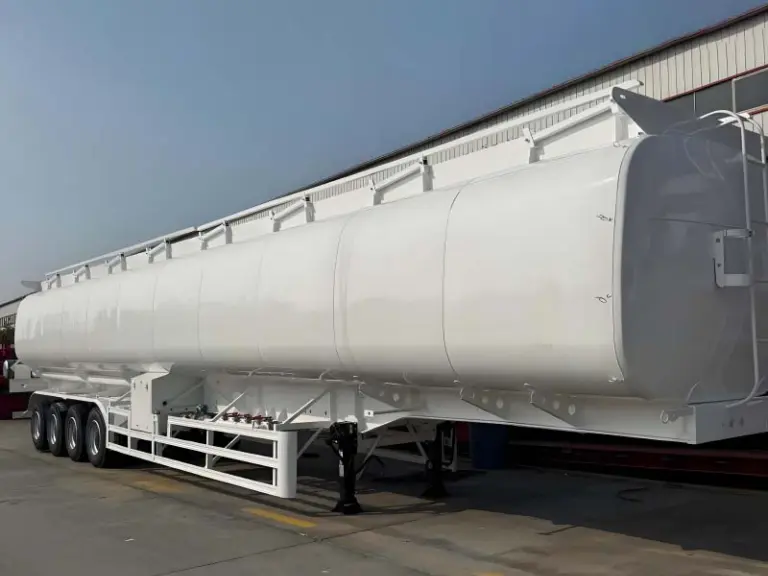

Shown: 2, 3 and 4-axle configurations (other axle counts available) — the tank can be carbon steel, stainless steel or aluminum. Tell us your payload, media and road rules and we will match the spec.
About this Liquid Fuel Tank Semi-Trailer
Our liquid fuel tank semi-trailer moves gasoline, diesel and other liquids in a baffled, compartmented tank built for safe, stable transport. Built in Liangshan — China's trailer manufacturing hub — every unit is engineered to meet the road, dimension and axle-load regulations of your destination country, so it is legal to register and operate on local highways.
Aluminium (lightweight), carbon steel or stainless bodies, 2–5 compartments and market-specific safety fittings (ADR and equivalents) are all available.
Other Common Sizes & Configurations
Beyond the standard build, we make these Liquid Fuel Tank Semi-Trailer variants to match different cargo and local road rules — all sizes, axle counts and capacities listed above are configurable to your specification:
- 40–47 m³ tank — 3-axle, most common fuel build
- 30–40 m³ compact — regional fuel delivery
- 2–5 compartments — split loads by grade
- Aluminium / steel / SS — weight vs media
- Elliptical / round / twin-D — lower centre of gravity
Our Tank Models
Browse the specific Liquid Fuel Tank Semi-Trailer configurations we build — spec, quote and ship.
Technical Specifications
Typical configuration — customizable to your payload and road conditions.
| Item | Specification (typical — customizable) |
|---|---|
| Type | Liquid Fuel Tank Semi-Trailer |
| Capacity | 30–50 m³ (customizable) |
| Payload | 17–31 t (customizable) |
| Gross Vehicle Weight (GVW) | 35–40 t (customizable) |
| Axle | 3 (customizable) |
| Compartments | 2–5 (customizable) |
| Material | Aluminium / Carbon steel / Stainless (optional) |
| Overall length | 11–13 m (customizable) |
| Width | 2.5 m |
| Brake system | Dual-line pneumatic |
| Tyres | 12R22.5 |
All dimensions, axle count, suspension, materials and fittings above are configurable — tell us your payload, local road rules and quantity and we will build to your market.
Liquid Fuel Tank Semi-Trailer Price
Indicative export pricing — your quote depends on specs and quantity.
A standard 3-axle 45 m³ aluminium fuel tanker typically runs USD 18,000 – 32,000 from our Liangshan factory. Stainless, multi-compartment and ADR-heavy builds add to the price.
Pricing reflects our factory-direct export rates; final quotation is confirmed against your exact specification and order volume.
Get a firm factory-direct quote
Tell us your payload, quantity and destination port. We reply within 24 hours.
Why Buy From Shuyue
Factory-direct quality you can verify.
How the Liquid Fuel Tank Semi-Trailer Compares
Not sure which trailer type fits your cargo? Here is how the Liquid Fuel Tank Semi-Trailer differs from close alternatives.
vs Concrete Mixer Upper Body
Tank carries liquid in a baffled vessel; the Concrete Mixer Upper Body spins wet concrete in a rotating drum — different media, different mechanism.
vs Cargo Box Semi-Trailer
Tank is a pressure vessel for liquids; the Cargo Box Semi-Trailer is a dry enclosed body for pallet goods.
vs Flatbed Semi-Trailer
Tank encloses liquid for safe bulk; the Flatbed Semi-Trailer is an open deck for containers and steel.
Where It Works
Fuel Distribution
Petrol and diesel to stations.
Chemical Liquids
Rated tanks for regulated media.
Edible Oil
Food-grade stainless builds.
Aviation Fuel
Airport hydrant and bowser supply.
Customer Projects
Real Liquid Fuel Tank Semi-Trailer deliveries to key markets.
Other Trailer Types
Explore the full 15-type Shuyue range.
One Factory, the Full Semi-Trailer Range
Shuyue is a Liangshan-based semi-trailer manufacturer — built in China's leading trailer hub, where the full 15-type range is produced on shared engineering, welding and QC lines under one accountable supplier.
- Flatbed · Fence · Lowbed · Dump · Cargo Box
- Side Wall · Side Curtain · Skeletal · Car Carrier · Liquid Fuel
- Cement Bulker · Concrete Mixer · Superlink · Special · Trucks
- Mixed fleets sourced from one factory — consistent quality, one contract
- Every type customizable to your payload, road rules and quantity
Get a Quote for this Liquid Fuel Tank Semi-Trailer
Tell us your payload, quantity and destination port — we'll return a factory-direct quote fast.
