Cargo Box Semi-Trailer
Fully enclosed dry van, reefer or curtainside box for high-value pallet goods — weatherproof and secure, factory-direct from Liangshan.
Common configuration shown above — these are our typical builds, fully customizable. Tell us your payload, local road rules and quantity and we will match axle count, dimensions and suspension to your market.
Cargo Box Semi-Trailer Configurations

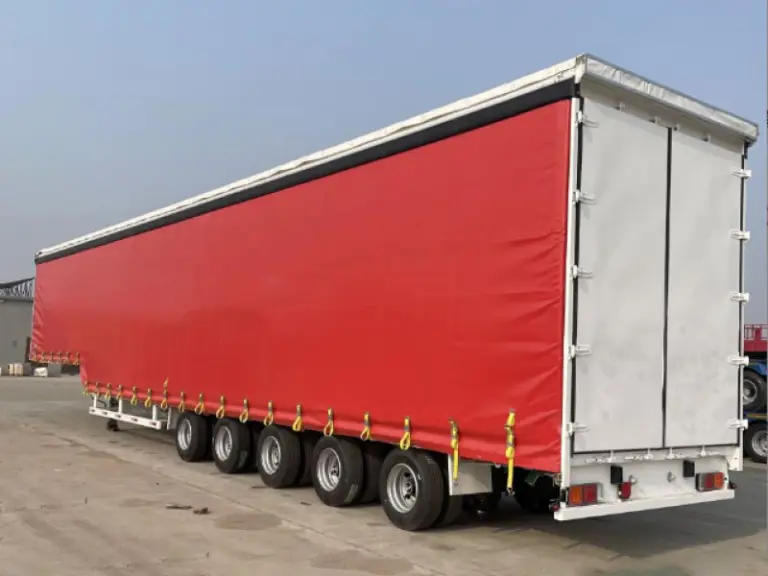

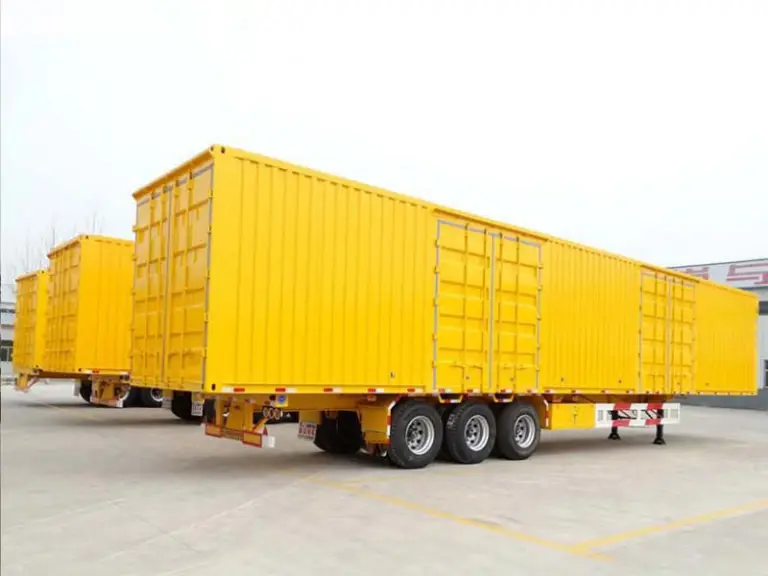

Shown: enclosed cargo box and curtain-side configurations (other axle counts and body types available) — volume, axle count and body type are all customizable to your market.
About this Cargo Box Semi-Trailer
Our cargo box semi-trailer is a hard, fully enclosed body that keeps goods dry, clean and secure — the workhorse of line-haul and parcel logistics. Built in Liangshan — China's trailer manufacturing hub — every unit is engineered to meet the road, dimension and axle-load regulations of your destination country, so it is legal to register and operate on local highways.
Dry van, refrigerated (reefer) or curtainside (curtain + hard roof) bodies are all available, with side-door and floor options to match your handling.
Other Common Sizes & Configurations
Beyond the standard build, we make these Cargo Box Semi-Trailer variants to match different cargo and local road rules — all sizes, axle counts and capacities listed above are configurable to your specification:

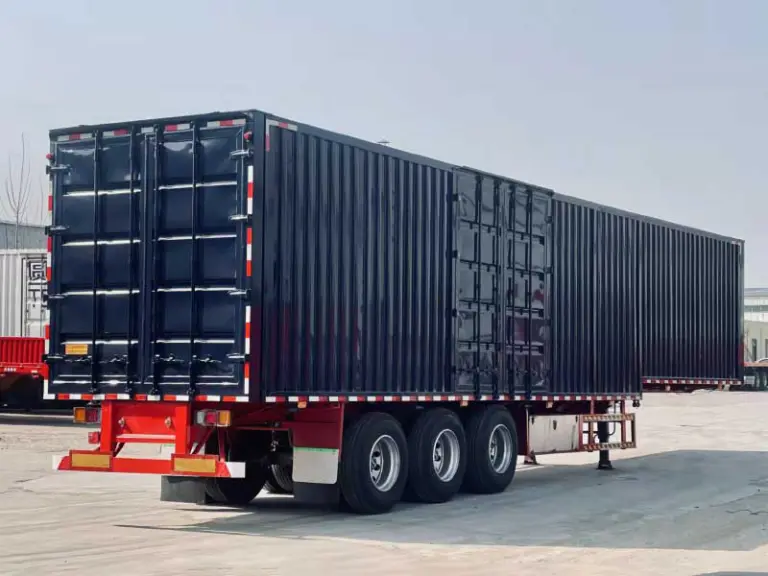

- 13.6 m dry van — 3-axle, 80–100 m³; most common line-haul box
- 14.6 m long-haul — higher volume cross-border runs
- 2.5–2.8 m internal height — within 4 m overall limit
- Curtainside 85–140 m³ — fast side loading of pallets
- Reefer build — insulated body with cooling unit
Our Cargo Box Models
Browse the specific Cargo Box Semi-Trailer configurations we build — spec, quote and ship.
Technical Specifications
Typical configuration — customizable to your payload and road conditions.
| Item | Specification (typical — customizable) |
|---|---|
| Type | Cargo Box Semi-Trailer |
| Payload | 14–32.5 t (customizable) |
| Gross Vehicle Weight (GVW) | 20–40 t (customizable) |
| Axle | 2 / 3 (customizable) |
| Body type | Dry van / Reefer / Curtainside (optional) |
| Overall length | 13.6–14.6 m (customizable) |
| Width | 2.5 / 2.55 m (customizable) |
| Internal height | 2.5–2.8 m (customizable) |
| Volume | 80–100+ m³ (customizable) |
| Brake system | Dual-line pneumatic |
| Tyres | 12R22.5 |
All dimensions, axle count, suspension, materials and fittings above are configurable — tell us your payload, local road rules and quantity and we will build to your market.
Cargo Box Semi-Trailer Price
Indicative export pricing — your quote depends on specs and quantity.
A standard 3-axle 13.6 m dry van typically runs USD 14,000 – 22,000 from our Liangshan factory. Reefer units, curtainside and higher-volume bodies add to the price.
Pricing reflects our factory-direct export rates; final quotation is confirmed against your exact specification and order volume.
Get a firm factory-direct quote
Tell us your payload, quantity and destination port. We reply within 24 hours.
Why Buy From Shuyue
Factory-direct quality you can verify.
How the Cargo Box Semi-Trailer Compares
Not sure which trailer type fits your cargo? Here is how the Cargo Box Semi-Trailer differs from close alternatives.
vs Side Wall Semi-Trailer
Cargo box is a hard enclosed body with the best weather and theft protection; the Side Wall Semi-Trailer uses a soft curtain that opens fully for fast loading but seals a little less.
vs Fence Semi-Trailer
Cargo box is fully closed and rain-proof; the Fence Semi-Trailer is open-topped with stake rails and no weather protection.
vs Flatbed Semi-Trailer
Cargo box encloses the load for security and weather; the Flatbed Semi-Trailer is an open deck strapped down, better for containers and steel.
Where It Works
Parcel & Courier
Cartons and pallets for express networks.
FMCG & Retail
Daily goods moved dry and secure.
Cold Chain
Reefer boxes for chilled and frozen food.
Industrial Goods
Machinery parts and packaged components.
Customer Projects
Real Cargo Box Semi-Trailer deliveries to key markets.
Other Trailer Types
Explore the full 15-type Shuyue range.
One Factory, the Full Semi-Trailer Range
Shuyue is a Liangshan-based semi-trailer manufacturer — built in China's leading trailer hub, where the full 15-type range is produced on shared engineering, welding and QC lines under one accountable supplier.
- Flatbed · Fence · Lowbed · Dump · Cargo Box
- Side Wall · Side Curtain · Skeletal · Car Carrier · Liquid Fuel
- Cement Bulker · Concrete Mixer · Superlink · Special · Trucks
- Mixed fleets sourced from one factory — consistent quality, one contract
- Every type customizable to your payload, road rules and quantity
Get a Quote for this Cargo Box Semi-Trailer
Tell us your payload, quantity and destination port — we'll return a factory-direct quote fast.
